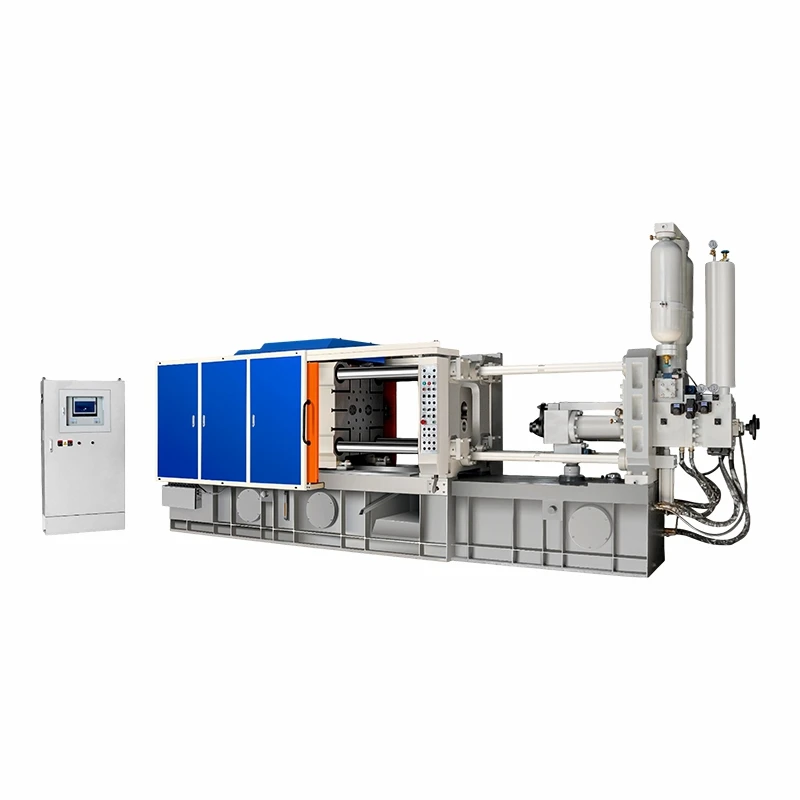

Multi-stage Injection Die Casting Machine

In the foundry business, trapped air costs you money. If molten metal shoots into the mold at full speed immediately, it traps air inside the cavity. When the customer X-rays the casting, it fails. You lose the material, the labor time, and your profit margin.

Nantong HengMing Machinary solves this with a multi-stage injection die casting machine. By breaking the metal injection into distinct physical phases, this equipment pushes air out before the metal fills the mold. It protects your profit margins by ensuring your parts pass inspection, turning raw aluminum into directly billable inventory.

A successful casting requires precise control over the metal behavior. The multi-stage injection system for die casting manages this through three mechanical phases.

First, the plunger moves forward slowly. This pushes the air out of the shot sleeve and allows the mold vents to breathe. Second, once the air escapes, the machine triggers the high-speed phase. It violently forces the metal into the cavity before it cools down, preventing surface defects and cold shuts. Third, it locks in a massive terminal holding pressure. This physically squeezes the cooling metal to remove microscopic shrinkage.

This reliable sequence makes the equipment a highly profitable aluminum high pressure die casting machine. It handles the fast cooling rates of molten aluminum while securing internal density. Whether you run a general high pressure die casting machine for commercial hardware or need a dedicated multi-stage shot die casting machine for safety-critical automotive brackets, this staging process keeps your daily scrap rate near zero.



Equipment Layout & Photos



Caption:

The heavy injection cylinder, built to execute distinct speed phases without mechanical hesitation or pressure loss.

Caption:

Direct handwheel regulators allowing operators to physically dial in the exact speed and pressure for each injection stage.

Caption:

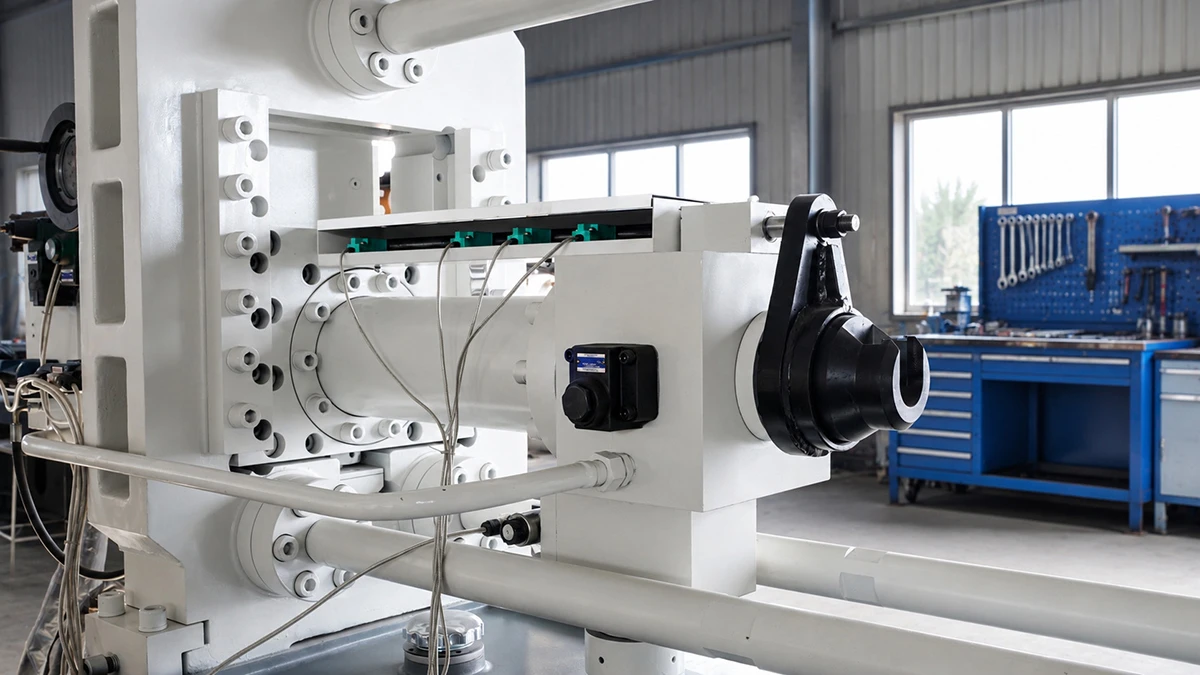

Reliable mechanical limit switches that trigger the immediate transition from slow venting to high-speed filling.

Caption:

Defect-free aluminum components produced by properly venting the air before the final high-speed shot.

A multi-stage system must switch speeds instantly to work. Before loading your cargo, our factory engineers run strict physical injection tests.

We set the limit switches and dial in the handwheels to simulate a heavy production cycle. We monitor the hydraulic fluid to confirm the world-class Rexroth valves transition from the slow phase to the fast phase without dropping the pressure. This physical verification guarantees the machine will vent air properly and pack your metal tight from the first day you connect the power in your factory.

Heavy machinery requires serious transit protection. We coat all exposed steel on the injection unit with thick anti-rust compounds to block ocean humidity.

We use industrial cranes to position the heavy machine base into the shipping container. Heavy timber blocks and tensioned marine chains lock the frame down. This prevents transit vibrations from damaging the hydraulic alignment. Your purchase includes a 12-month warranty starting when the cargo reaches your destination port. Our engineering team also provides direct video support to help your mechanics set up the multi-stage limit switches for your specific molds.
