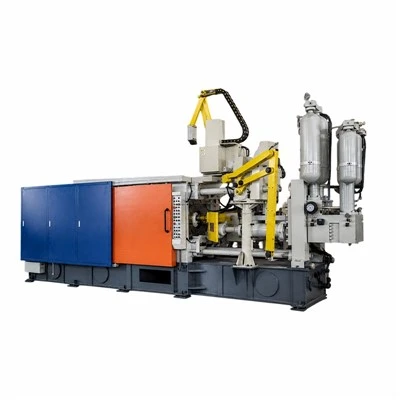

Large-sized Die Casting Machine

In Tier 1 automotive manufacturing, casting large structural components introduces extreme physical forces. When molten metal fills a massive mold cavity, the resulting expansion force is tremendous. If the equipment lacks structural rigidity, the platens will experience microscopic deflection. This subtle bending instantly creates severe material flash, wasting kilograms of expensive aluminum alloy per cycle and causing irreversible wear to tooling that costs hundreds of thousands of dollars.

Nantong HengMing Machinary specifically addresses this structural risk. By engineering oversized tie bars, thickened cast steel platens, and integrating premium Siemens and Rexroth control architectures, this large-sized die casting machine guarantees absolute locking rigidity. It eliminates platen distortion under extreme loads, protecting your massive mold investments and ensuring the dimensional accuracy required by global automotive OEMs.

Pushing massive volumes of molten metal across long, complex mold cavities before solidification requires specialized hydraulic dynamics. Standard systems struggle with pressure drops across extended distances.

To achieve rapid cavity filling for elongated, thin-walled exterior parts, the equipment utilizes an ultra-high-volume metal displacement system driven by high-flow Rexroth manifolds. This precise, microsecond-level hydraulic response makes the equipment a highly dependable car bumper making machine and a premium automotive-related large parts machine.

For thick-walled structural integrity, the system must aggressively pack the metal during the cooling phase to eliminate internal shrinkage. Acting as a severe-duty metal pressure casting machine, the hydraulic architecture maintains a massive, unwavering holding pressure. This robust fluid dynamic design makes it the definitive heavy-duty die casting machine for the modern foundry, engineered for:



Product Details



Caption:

The reinforced structural frame of the high-capacity die casting machine, designed to absorb the immense shock of heavy metal injection.

Caption:

High-tensile alloy tie bars engineered to prevent any microscopic stretching or platen deflection during peak clamping.

Caption:

The high-flow Rexroth hydraulic block, critical for delivering the massive fluid volume needed for ultra-fast metal displacement.

Caption:

Engineers executing strict dynamic load fatigue analysis to verify the ultimate locking force capability.

Deploying machinery of this scale requires absolute certainty in its mechanical limits. Standard testing protocols are insufficient for equipment designed to handle massive automotive tooling.

Before any shipment is authorized, the entire clamping and injection architecture undergoes severe dynamic load fatigue analysis. Engineers mount a heavy calibration block to push the toggle system to its maximum tonnage limits. By simulating the extreme expansion forces of large-scale production, the team verifies that the tie bars stretch within exact safety margins and the Rexroth valves maintain instant responsiveness under peak pressure. This rigorous, high-tonnage physical calibration ensures the equipment will perform relentlessly in a continuous Tier 1 automotive environment.

Transporting machinery that weighs tens of thousands of kilograms requires specialized heavy-lift marine protocols. A standard loading approach is not viable for flat rack or open-top shipping containers.

To combat severe marine environments, all exposed machined surfaces receive an industrial-grade moisture barrier treatment, heavily coated with protective compounds and sealed. The massive machine base is positioned using industrial cranes, locked into the steel transport platform with heavy timber framing, and permanently lashed down using heavy-duty marine chains. A strict, component-level inventory is photographed before final dispatch.

Coverage includes a fair 12-month warranty beginning exactly upon arrival at the destination port. Furthermore, senior engineering support is available globally to assist your factory team with heavy machinery positioning, hydraulic commissioning, and initial mold setup.
