3C Electronics Die Casting Machine
Product Introduction
In the 3C electronics market, precision is your only defense against high scrap rates. A fraction of a second delay during the injection phase can lead to cold shuts on an entire batch of smartphone frames. To protect your profit margins, your 3C electronics die casting machine must deliver absolute stability.
Nantong HengMing Machinery builds equipment focused strictly on yield rate and continuous running. We integrate premium imported hardware-Siemens, Rexroth, Yuken, and Schneider-to build an aluminum die casting mold machine that acts as a dependable production asset. We ensure your assembly line keeps moving without unexpected stops, delivering the high-precision output required for thin-walled electronics components.
Specification
|
Specification |
Unit |
HM-C200 |
|
Die locking force |
KN |
2000 |
|
Inner space between tie bars(H*V) |
mm |
480*480 |
|
Die thickness |
mm |
200-550 |
|
Die stroke |
mm |
380 |
|
Ejection stroke |
mm |
85 |
|
Ejection force |
KN |
110 |
|
Injection force |
KN |
105-230 |
|
Injection position |
mm |
0,-140 |
|
Injection stroke |
mm |
350 |
|
Diameter of pressure chamber |
mm |
50,60,70 |
|
Weight of feeding metal per time(AL) |
Kg |
2.8 |
|
Casting projected area |
Cm2 |
171-666 |
|
Circle period |
S |
7 |
|
Pipe line pressure |
Mpa |
14 |
|
Motor power |
KW |
15 |
|
Machine weight |
Kg |
7500 |
|
Overall dimension(L*H*W) |
m |
5.3*1.19*2.3 |
Product Feature and Application
Manufacturing precision 3C components requires explosive injection speeds. Our aluminum injection die casting machine is engineered specifically for this demanding environment.
The customized Siemens control panel serves as the central command, strictly monitoring the injection curves in real time. The execution unit relies on genuine Rexroth solenoid valves and Yuken pumps to deliver high-speed filling without pressure loss. Because it produces highly dense and flawless castings, this equipment is the proven choice for secondary cnc aluminium die casting processes where a perfect surface finish is mandatory.
As a dedicated die casting machine for 3C electronics, it is perfectly suited for demanding small aluminum die casting machine applications, including:
- Mobile & Wearables: Smartphone inner frames, smartwatch bodies, and precision camera bezels.
- Computing: Laptop chassis, tablet back covers, and high-density heat sinks.
- Telecommunications: 5G router housings and complex electronic connectors.
Product Details
Caption:

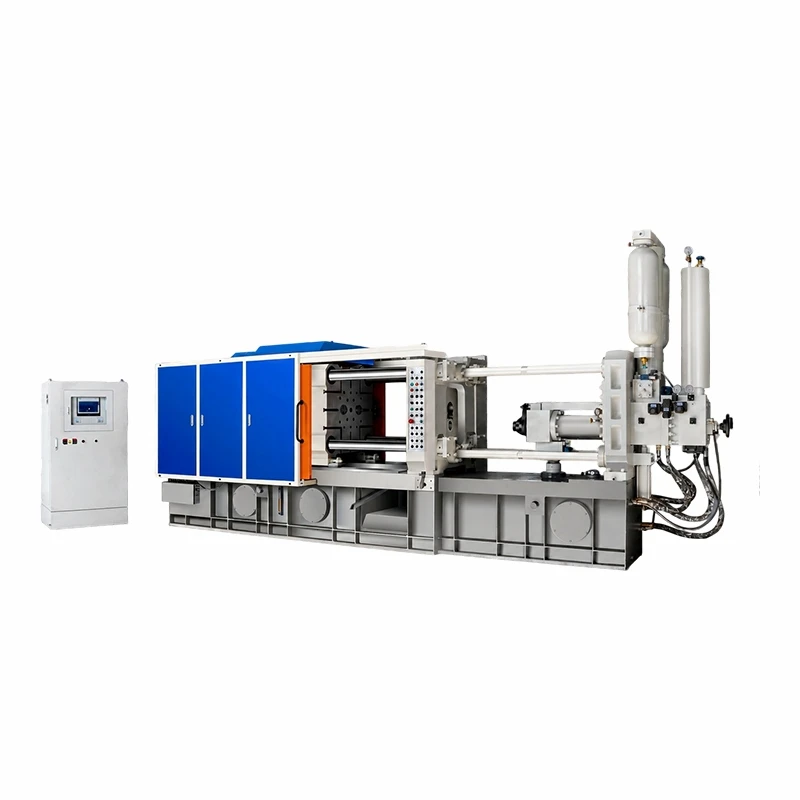

Full industrial view of the 3C consumer electronics die casting machine prepared for high-speed operation.
Caption:
The Siemens command center-ensuring precise parameter adjustments to maximize the yield rate of thin-wall parts.
Caption:
Execution unit-genuine Rexroth valves guaranteeing high-speed injection with stable pressure.
Caption:
Measuring the clamping force to ensure your complex castings have zero flash.
Product Qualification: Zero-Blind-Spot Verification
We do not ship industrial equipment based on promises. We operate a "Zero-Blind-Spot" verification policy, proving the machine's capability with hard data before it leaves our facility.
Your investment is fully protected. You do not release the final payment until you review and approve our comprehensive Pre-Delivery Inspection (PDI) report. We put the equipment through a 72-hour continuous dry run to expose any potential overheating issues. After that, we install a test mold and perform a strict 2000-shot simulated production run under high pressure. This breaks in the toggles and hydraulics, proving the machine is ready for continuous, heavy-duty operation on day one.
Delivery, Shipping and Service
Precision electronics manufacturing equipment must survive ocean freight without a single scratch. We utilize a strict "Zero-Movement" loading SOP to protect your asset.
Anti-Rust Armor:
All precision surfaces are coated with industrial grease and tightly sealed with heavy-duty stretch film to block out sea moisture.
Zero-Movement Anchoring:
We lock the machine base with customized wooden blocks and secure the entire unit using high-tensile fixing ropes inside the container.
Verified Checklist:
Every single component is verified against a strict loading list. Whether it is the main machine body, the hex wrenches, or the specific 8536500090 proximity switches on the die-casting machine, everything is photographed before the container is sealed.
Your 12-month warranty starts fairly on the exact date the equipment arrives at your destination port. We also provide free online video installation guidance and offer optional on-site engineering support for your facility.
FAQ
Q1: How do you guarantee the machine can handle thin-walled 3C parts?
A: We rely on our Zero-Blind-Spot verification. Before shipping, we conduct a 72-hour dry run and a strict 2000-shot high-pressure test. The combination of Siemens controls and Rexroth valves ensures the 3-stage injection speed is fast and stable enough for flawless thin-walled parts.
Q2: How does this machine maximize our return on investment?
A: In 3C manufacturing, your biggest hidden cost is machine downtime. By equipping our machines with global standard brands like Siemens and Rexroth, we ensure your equipment runs continuously. You avoid the high scrap rates associated with generic parts, translating directly into a stable profit margin.
Q3: What happens if an electrical part needs replacement in my country?
A: Because we use global standard brands like Siemens, Schneider, and Rexroth, you can source replacement parts in almost any local industrial market immediately. You will never be stuck waiting weeks for a proprietary circuit board.
Q4: What is the delivery time?
A: Typically 45 working days after the down payment. We require this time to ensure careful assembly and to complete our rigorous 2000-shot PDI testing process to guarantee the machine's reliability.
